Uniden R3 / R1 - Powered Mount Combo Kit
Minimalist / 12V Bare Wire and Ground Loop (Standard)
$135.00
Sale price
$135.00
Regular price
$149.00
Skip to product information

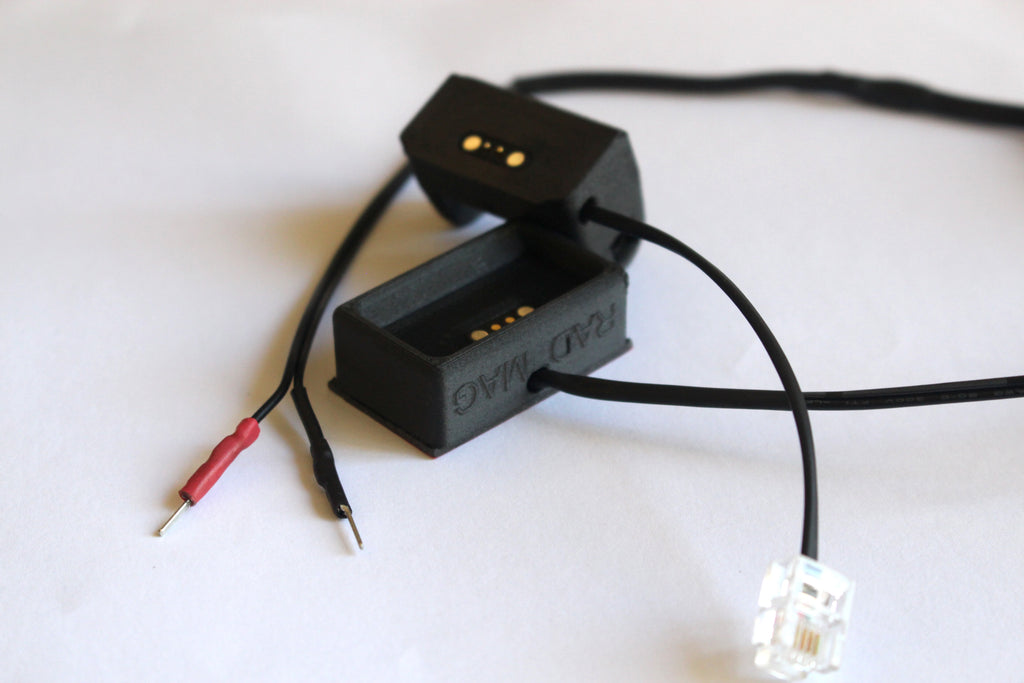

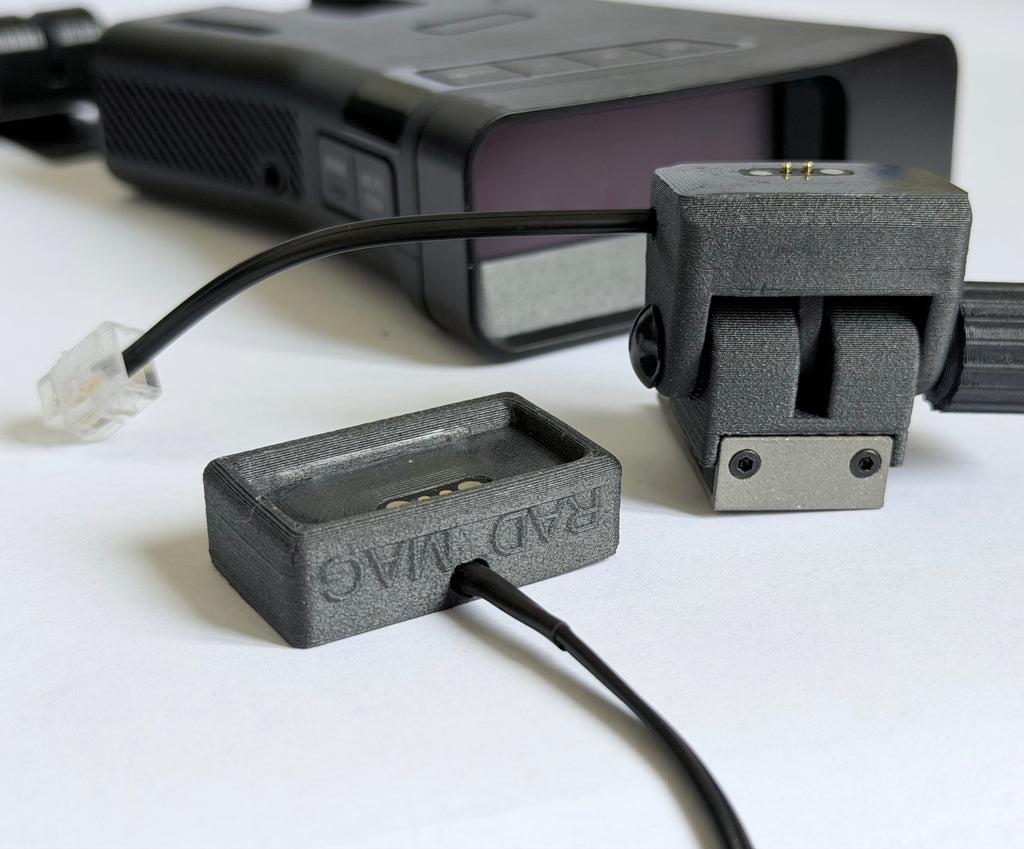

Powered receiver

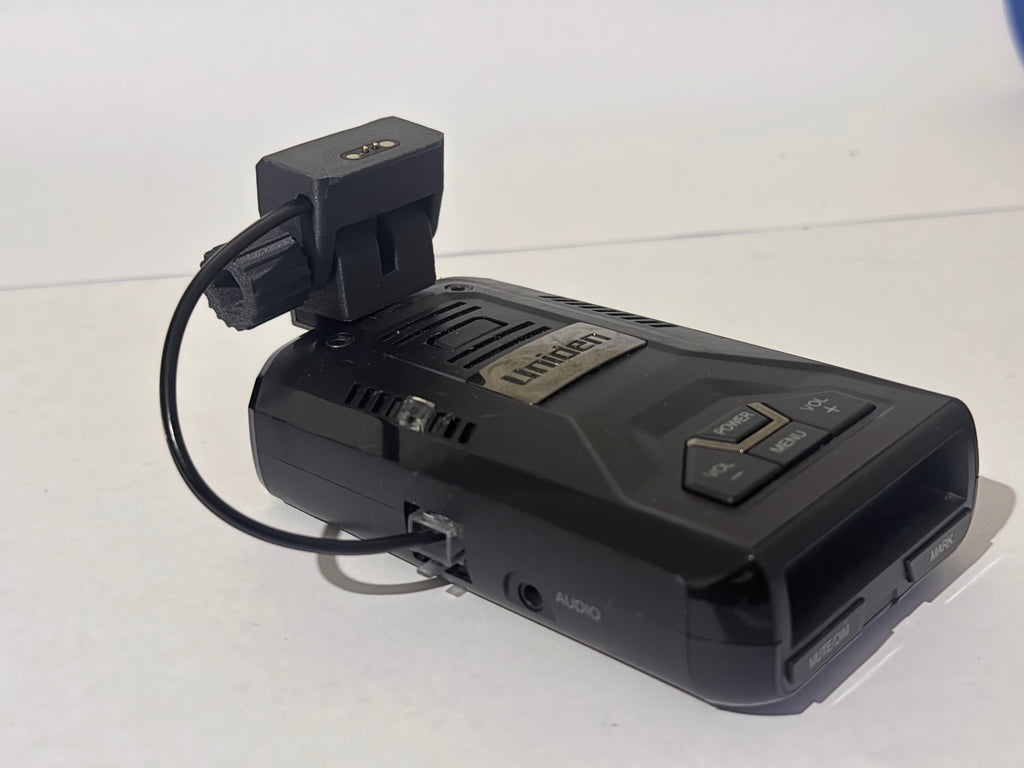

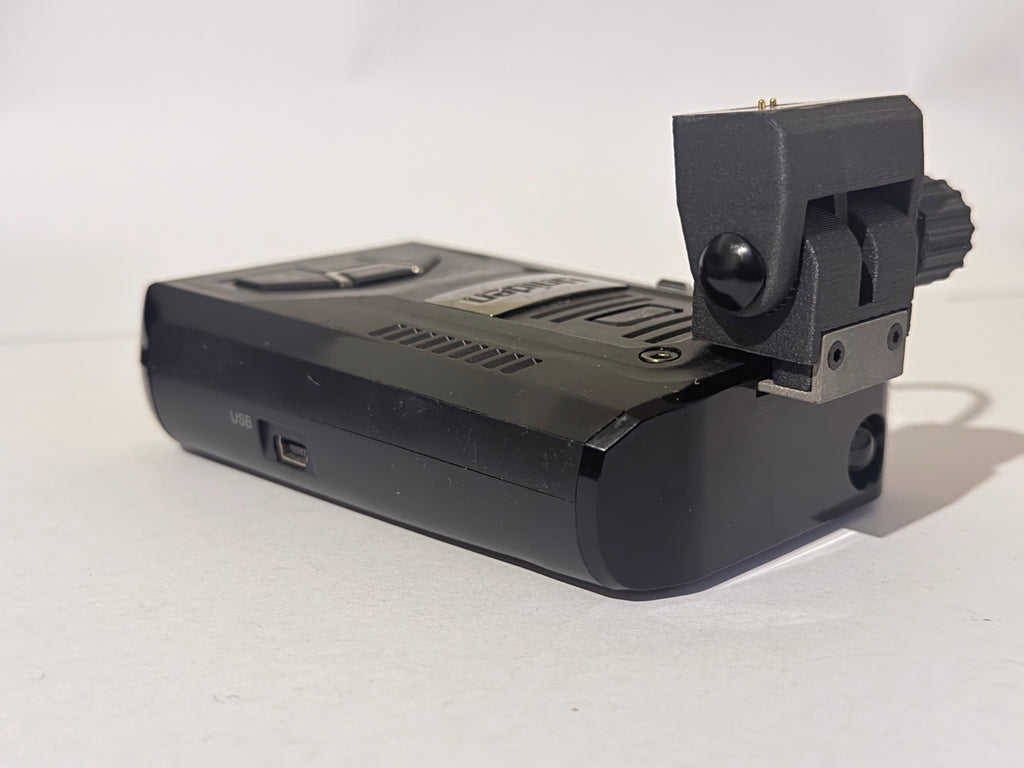

R1/R3 Radar Detector Mount

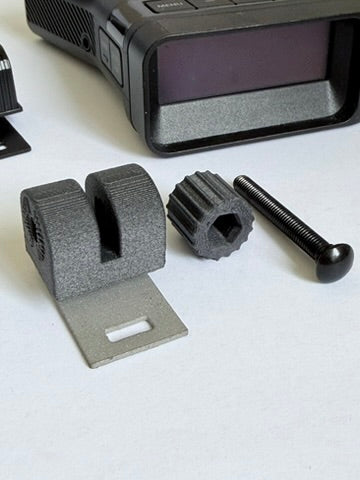

Uniden Swivel Bracket Kit
Prep wipe
Uniden R3 / R1 - Powered Mount Combo Kit
$135.00
Sale price
$135.00
Regular price
$149.00
- Everything in the box - mount, receiver, and power
- Magnetic docking replaces the bulky factory cradle
- Built specifically for the R1 and R3 - zero guesswork
Whats Included
What you’ll get

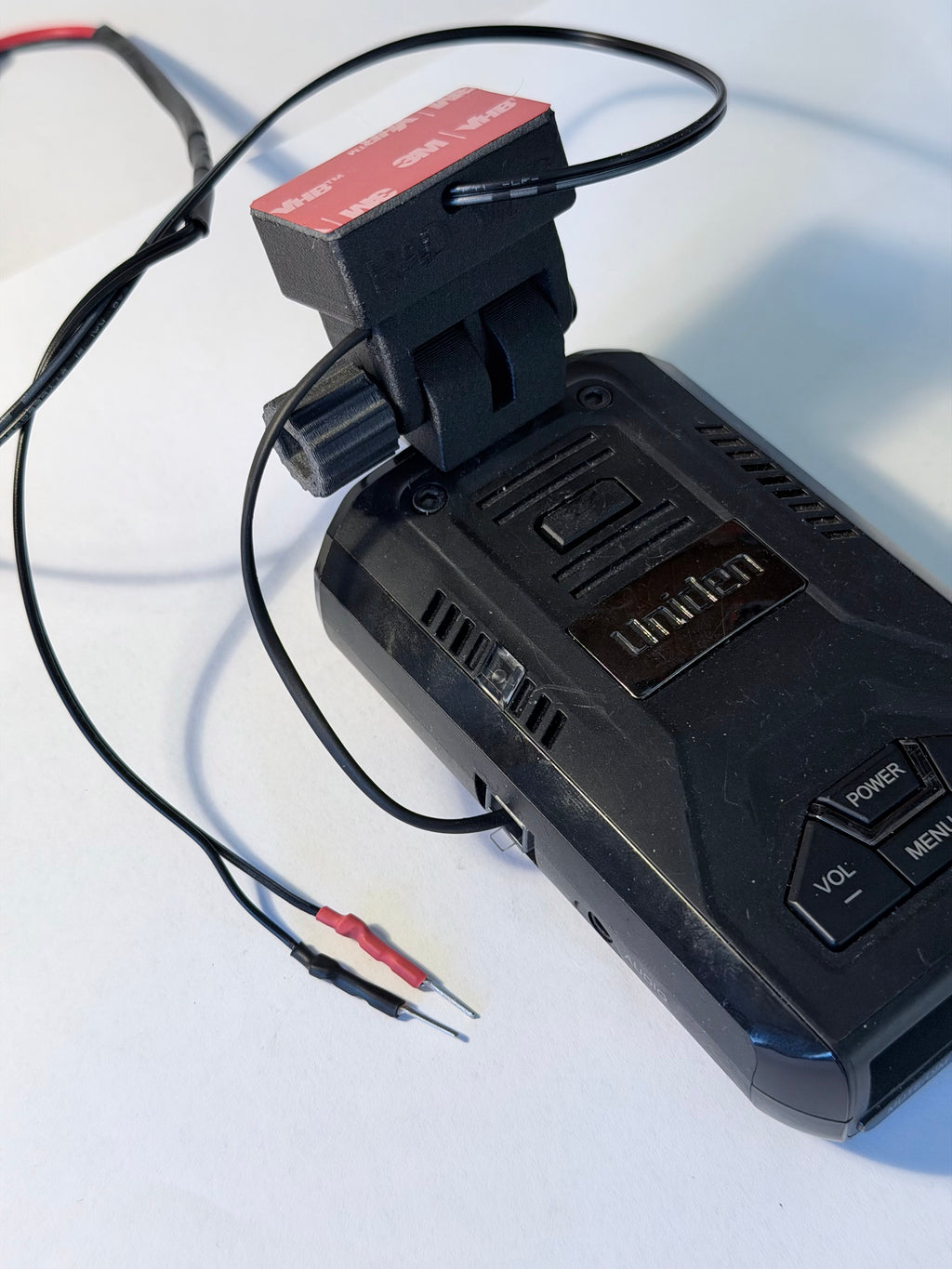

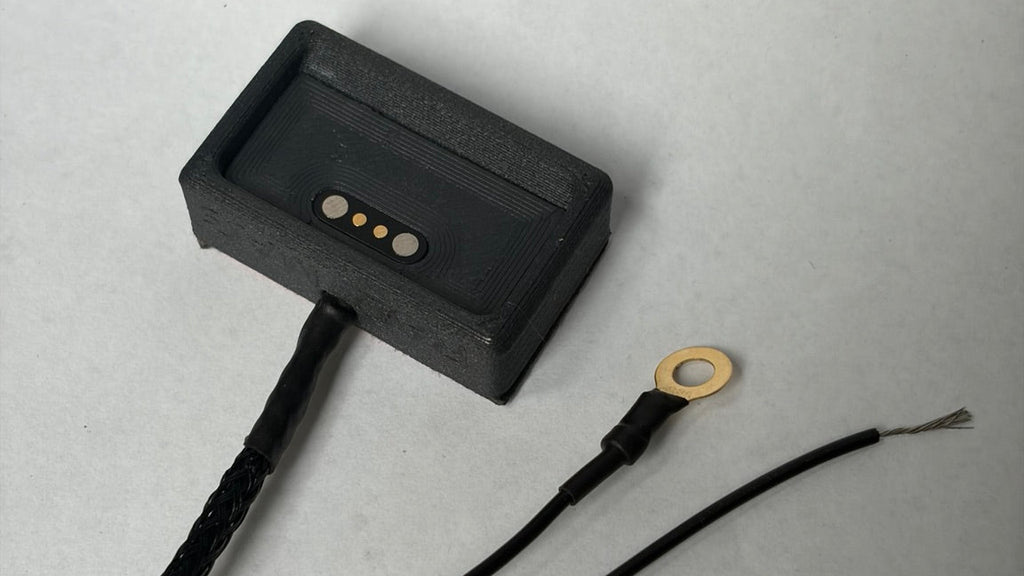

Hardwire kit - 3 m cable with soldered ground loop and stripped 12V lead, made for fuse taps.
Product Highlights
Compatibility
What's Included
What You Need
2-Pin vs 4-Pin
Important: 2-Pin and 4-Pin systems are not cross-compatible. Your detector, mount, and power cable must all use the same pin configuration.
- 2-Pin (Power Only): Your detector functions as it does today. All functions on the detector work. No remote mute switch.
- 4-Pin (Power + Mute/Alert/Data): Allows you to use a remote mute hardwire kit.
Unsure which one you need? Message us before ordering and we’ll help you confirm!
4-Pin Wiring Guide
This guide is only required if you are installing our 4-pin mount to connect with your existing Uniden SmartCord Hardwire Kit.
Not using a SmartCord? Save time and select our standard 2-pin option instead.
| Pin | Function | Mount | Uniden Cable |
|---|---|---|---|
| P2 | Mute input | Yellow | Green |
| P3 | +12V power | Red | Red |
| P4 | Ground | Black | Black |
| P5 | Alert LED output | White | White |
P3=Red=+12V and P4=Black=GND never change between brands.
Install Guide
30-Day Money-Back Guarantee
Mount it. Drive it. If it’s not right, send it back for a full refund.
Install Steps
Step 01
Clean & Apply
Wipe with isopropyl alcohol, then firmly press the receiver onto the windshield.
Step 02
Connect Power
Wire in the ground loop and connect to a switched 12V source.
Step 03
Drive

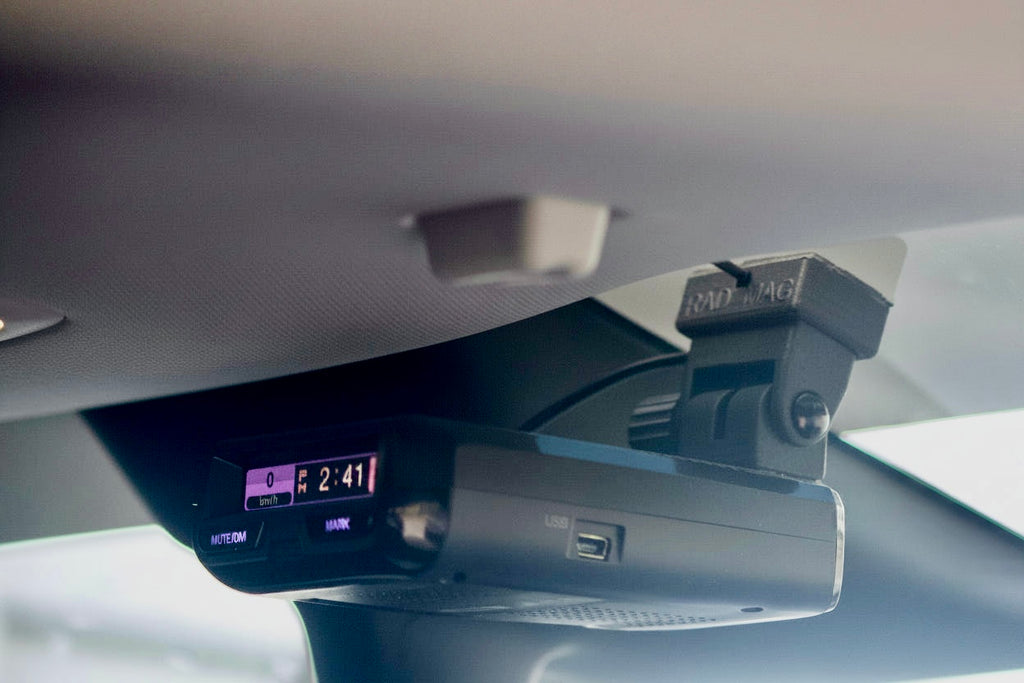

Snap your detector arm in and hit the road — you're protected.
Know your mount - 2-Pin vs 4-Pin
2-Pin
Power only - your detector runs and functions as normal. Best for simple hardwire installs.
4-Pin
Power + data - required for the Escort Smart Cord, Uniden Remote Mute Kit or Valentine One ESP accessories.
2-Pin and 4-Pin are not interchangeable — forcing a mismatched connection can damage your detector.
Full 2-Pin vs 4-Pin guide
Now in every box
Free
Best bond, first time
A rock-solid hold starts with clean glass
Every RAD MAG receiver mount now ships with a professional isopropyl alcohol prep wipe - so the adhesive grips bare glass instead of dust and film. One quick wipe means the strongest, longest-lasting bond.
Stronger bond
Easier install
Right first time
Your 30-second windscreen prep
1
Wipe the spot
Clean the mounting area with the included isopropyl wipe.
2
Let it dry fully
Wait until the glass is completely dry - the alcohol flash-evaporates in seconds, zero residue.
3
Press & mount
Onto fully dry glass, press the 3M VHB firmly from the centre for the strongest bond.
Important: let the windscreen dry completely before pressing the mount's 3M VHB tape into place - dry glass gives the strongest bond.
Frequently asked questions
2-Pin vs. 4-Pin Mounts — What’s the difference?
Are 2-Pin and 4-Pin mounts interchangeable?
No. They are completely non-interchangeable. They use different physical connectors and internal layouts. Mixing components or forcing a mismatched connection can permanently damage your radar detector.
Does my detector still fully function on 2-Pin?
Yes. All on-device features (Mute, Mark, top buttons, display, and audio alerts) work perfectly normal on both versions. "No alert out" simply means the 2-Pin mount cannot send signals to external, separate dash accessories (like a remote mute button or motorcycle helmet link).
Which one do I need?
| Mount Type | Best Used For | Confirmed Models |
|---|---|---|
| 2-Pin (Power Only) | Simple, clean hardwiring (e.g., mirror taps or basic fuse box power) where you just want the detector to power on and function as usual. | Standard power-only setups. |
| 4-Pin (Power + Data) | Required if you are using the manufacturer's factory "smart" hardwire kit with a remote mute button. | Uniden R4 / R7 / R8 / R8NZ, Escort EZ Mag, V1 Gen 2. |
⚠️ Bottom Line: If you want to use a Escort Smart Cord, Uniden Remote Mute Kit or Valentine One ESP Devices and are comfortable with soldering wires get the 4-pin. Otherwise, the standard 2-pin is fine for most users, If still unsure, message us before buying. 😊
When will I get my order?
We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.
How do I install the Radar Detector Mount?
The process is super simple and is virtually the same for both Escort and Uniden Detectors.
Click Here for a video tutorial: Video Tutorial
How do I wire up the Powered Receiver
All you need to do is connect the 12V Power source and the negative loop terminal.
Here is a guide to follow.
Where are your products manufactured?
Our products are manufactured both locally from 3D Printed parts and imported electronics. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
Note: 3D Parts can have slight imperfections. However, they are functionally tested and are tested to work as intended.
How much does shipping cost?
Shipping is calculated based on your location and the items in your order. You will always know the shipping price before you purchase.
