Uniden R8 / R7 / R4 - Powered RAD MAG Mount

Name: Uniden R8 / R7 / R4 - Powered RAD MAG Mount
Rating: 5.00 (13 reviews)

Minimalist / 2 pin - Power Only (Standard) / 12V Bare Wire and Ground Loop (Standard)

$115.00

$115.00 $149.00

Uniden R8 / R7 / R4 - Powered RAD MAG Mount

13 reviews

$115.00

$115.00 $149.00

Magnetically snaps in to power up, pulls off instantly to protect against theft.
Engineered for the exact form factor of the R4, R7, and R8
Routes your power cable inside the mount - hidden by design

30-day money-back guarantee

Whats Included

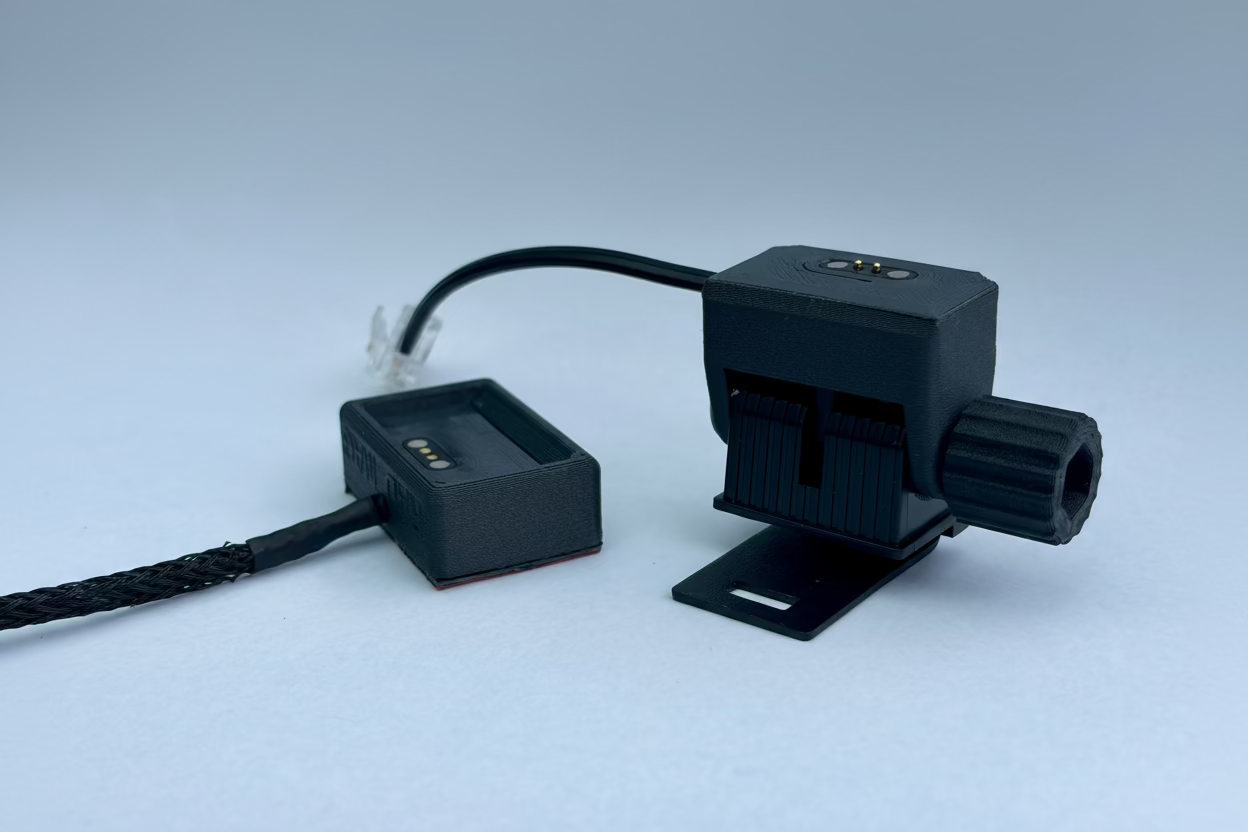

Powered receiver

R4/R7/R8 powered mount

Prep wipe

Receiver Cable MinimalistStandard cable - cleanest look Braided Sleeve (15CM)Braided sleeve over the visible cable

Pin Count 2 pin - Power Only (Standard)Power only - right for most drivers 4 Pin - Remote Mute - (Requires Hardwire kit)Adds remote mute - needs the hardwire kit

Power Source 12V Bare Wire and Ground Loop (Standard)Hardwire to the fuse box - clean permanent install Mirror Tap Spade Plugs (No Fuse)Taps the mirror power feed - easiest install Exposed Wire Tips (on Receiver end)Bare wire ends for custom wiring

What you’ll get

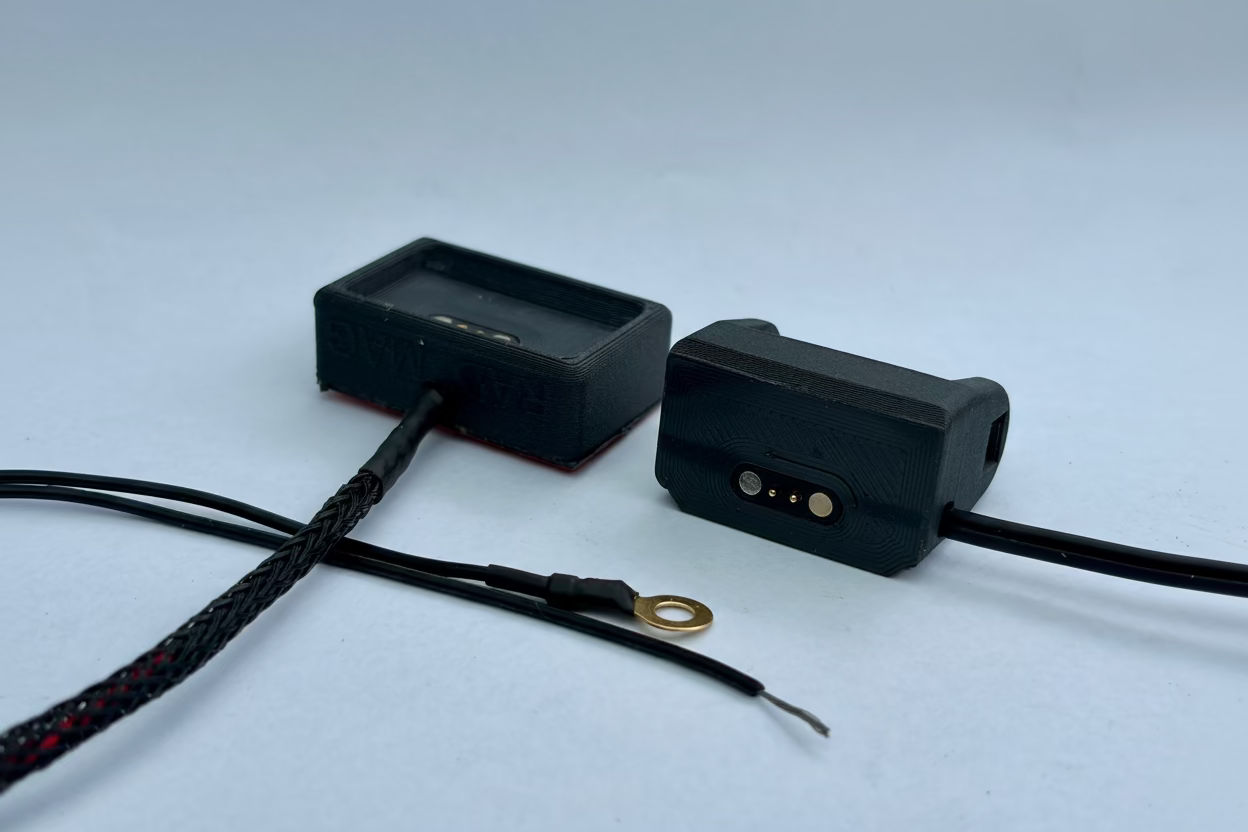

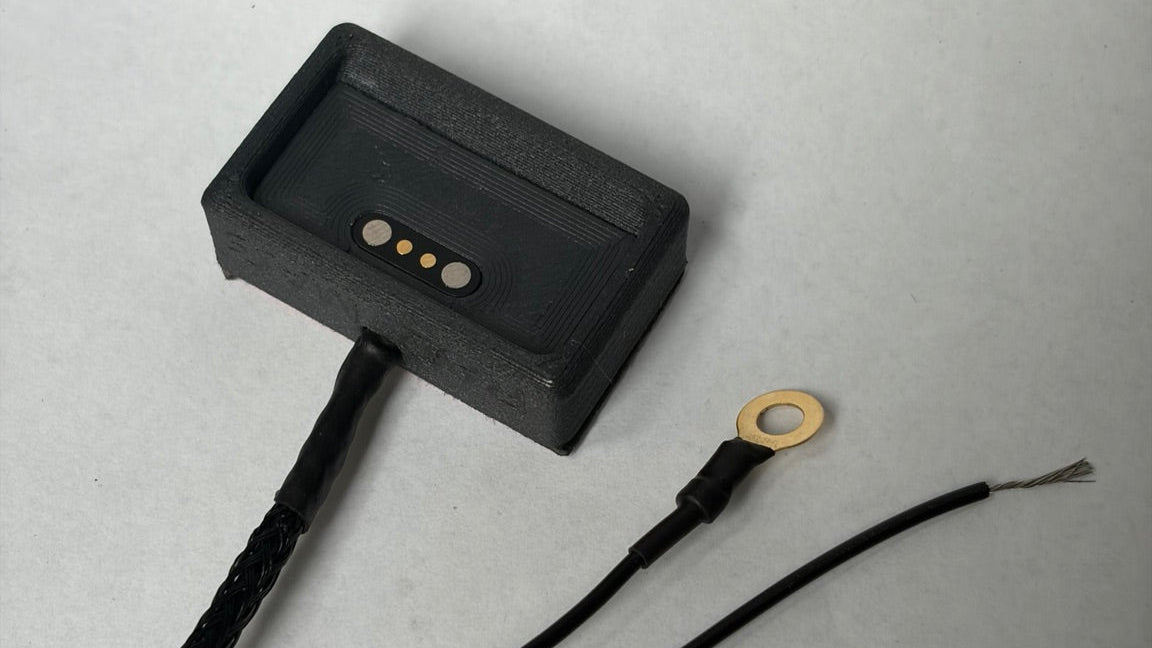

Hardwire kit - 3 m cable with soldered ground loop and stripped 12V lead, made for fuse taps.

Not sure how you'll power it? See the power options guide →

Fitment note

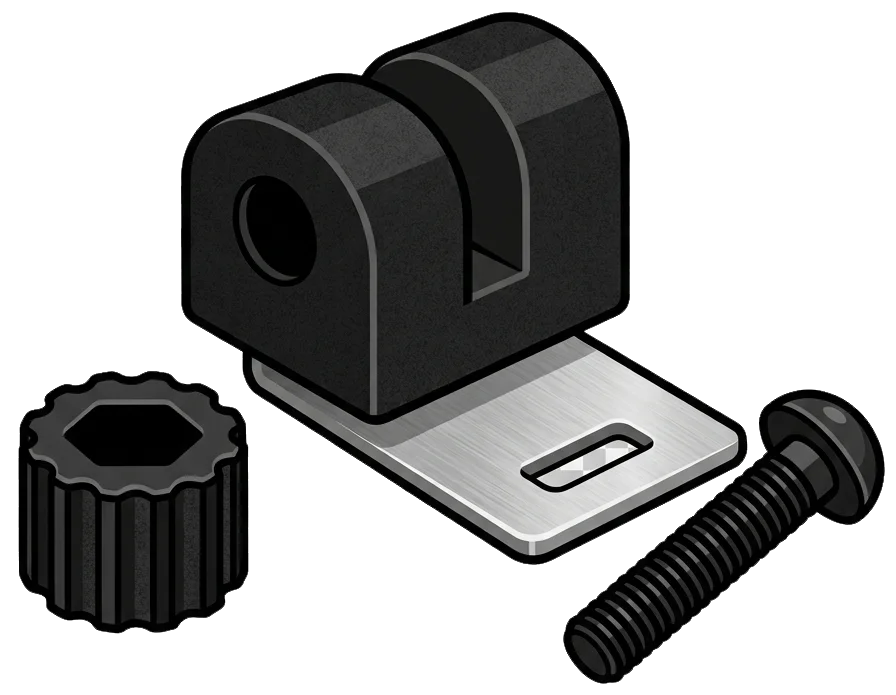

Requires 25mm pivot bracket - included with your detector or Uniden Swivel Bracket Kit - Detector Models: R1/R3/R4/R7/R8

Instant Snap-On Connection: Uses high-grade N45 magnets for a secure, one-handed mounting experience that takes less than a second.
Cable-Free Power: Integrated Pogo-pin connectors deliver seamless power directly to your Uniden, allowing you to ditch the messy cables forever.
NZ-Tough Stability: Precision-crafted from UV Stable ASA to ensure a rattle-free, vibration-proof mount that survives New Zealand’s harshest roads.
Extreme Grip: N45 magnets rated for 4.5kg of force - it won’t budge until you want it to.
Integrated Power: Built-in terminals eliminate messy dangling cables.
ASA Construction: withstand s high-heat windscreen environments.

Uniden R4

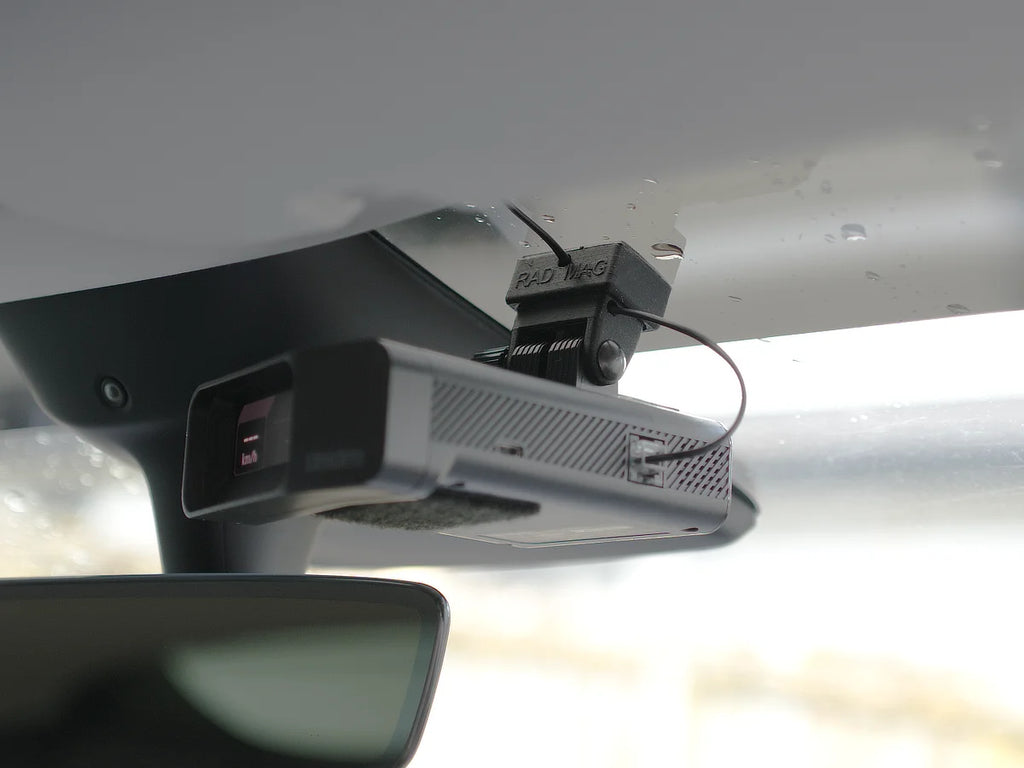

Uniden R7

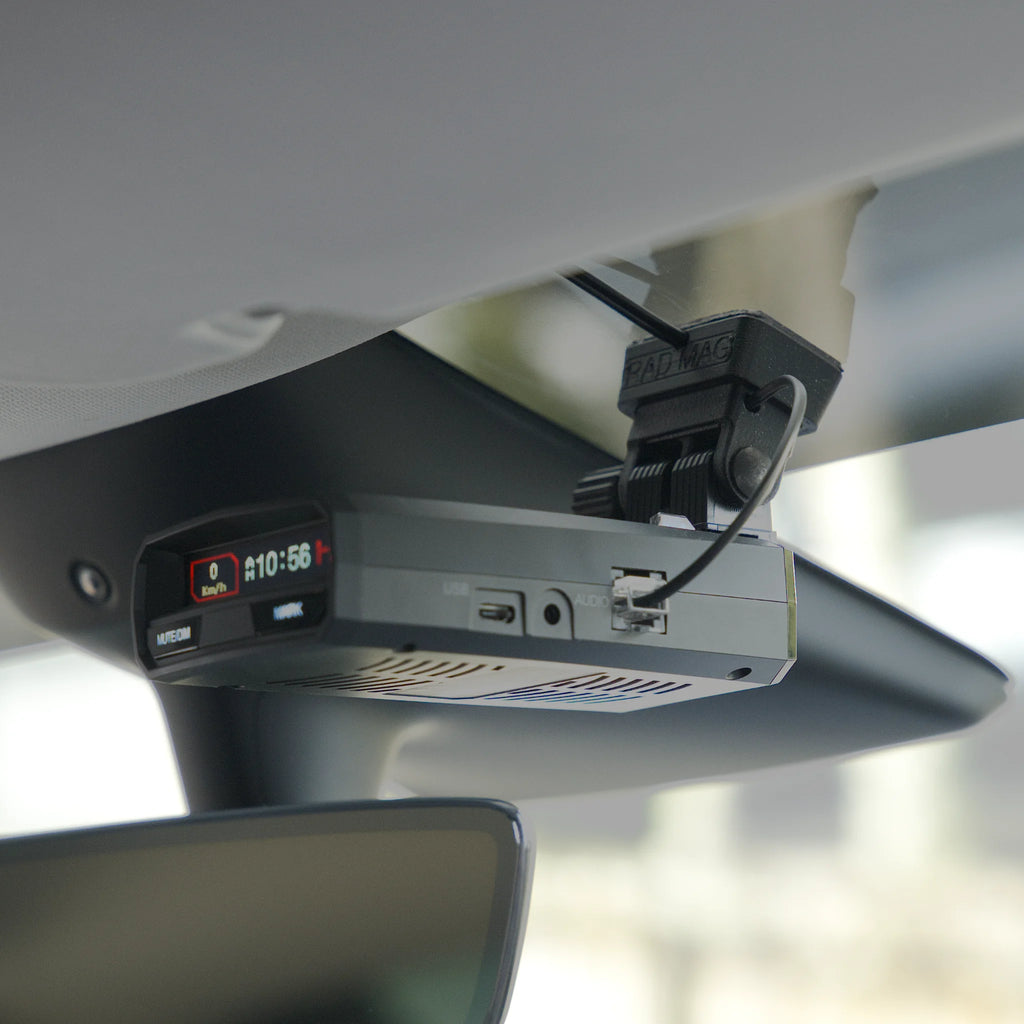

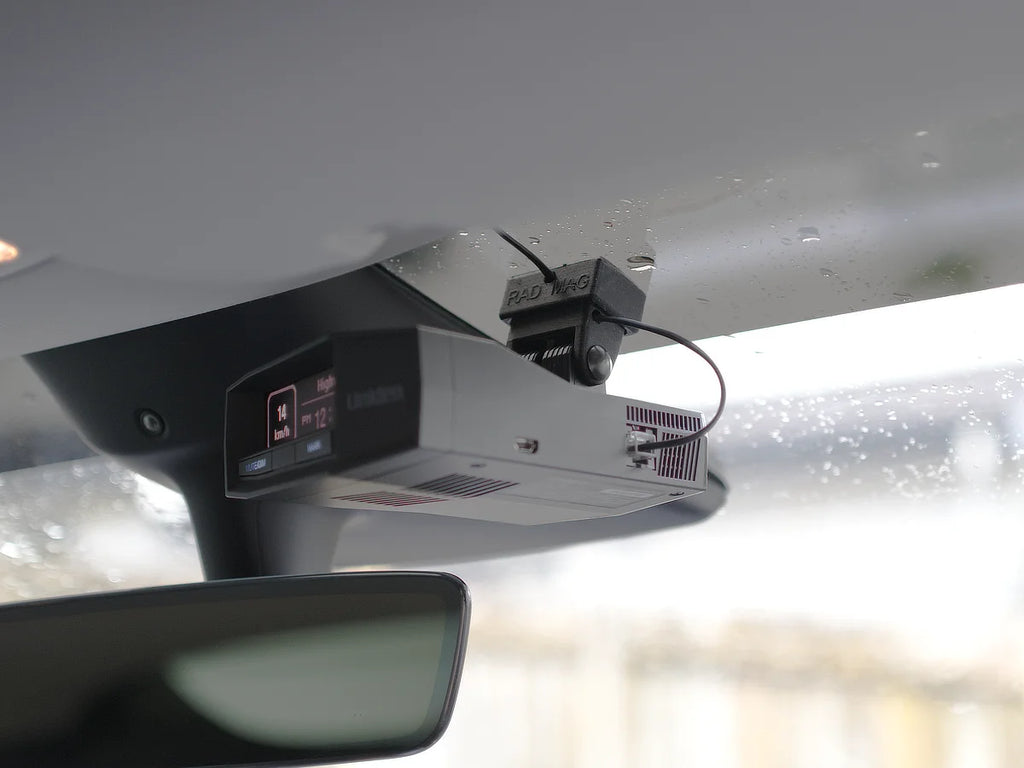

Uniden R8/R8w

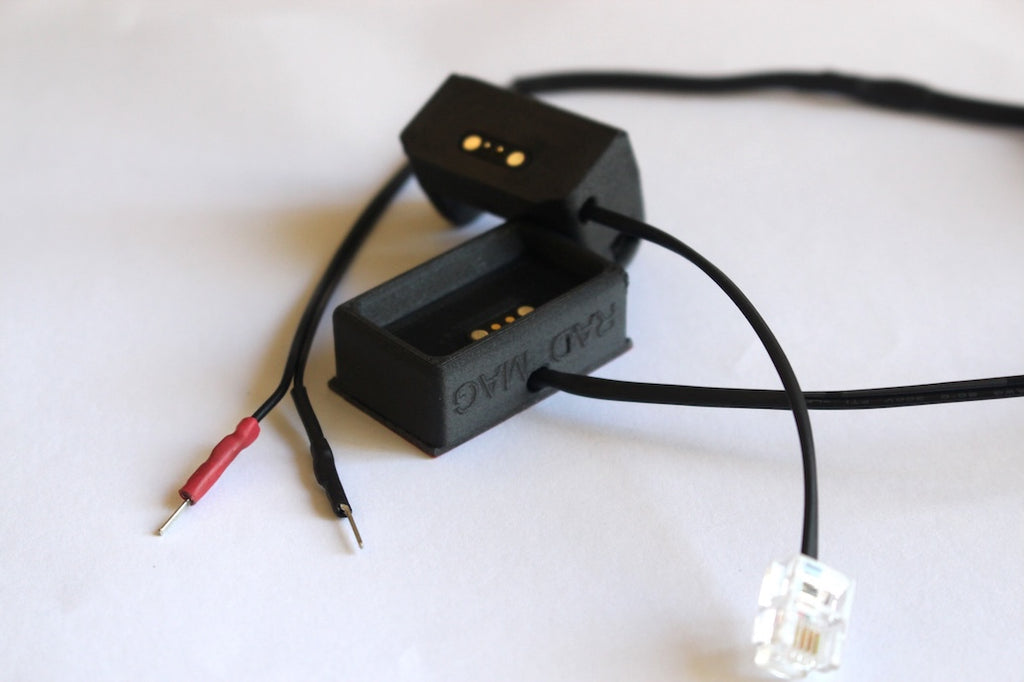

Powered RAD MAG Windscreen Receiver (with pre-applied adhesive).

3+ Meters of twin power/ground cable (pre-crimped).

Powered Uniden R-Series compatible mount. RJ11 terminated wire with Radar Detector holder. It requires a swivel mount and other hardware that ship with the R4/R7/R8.

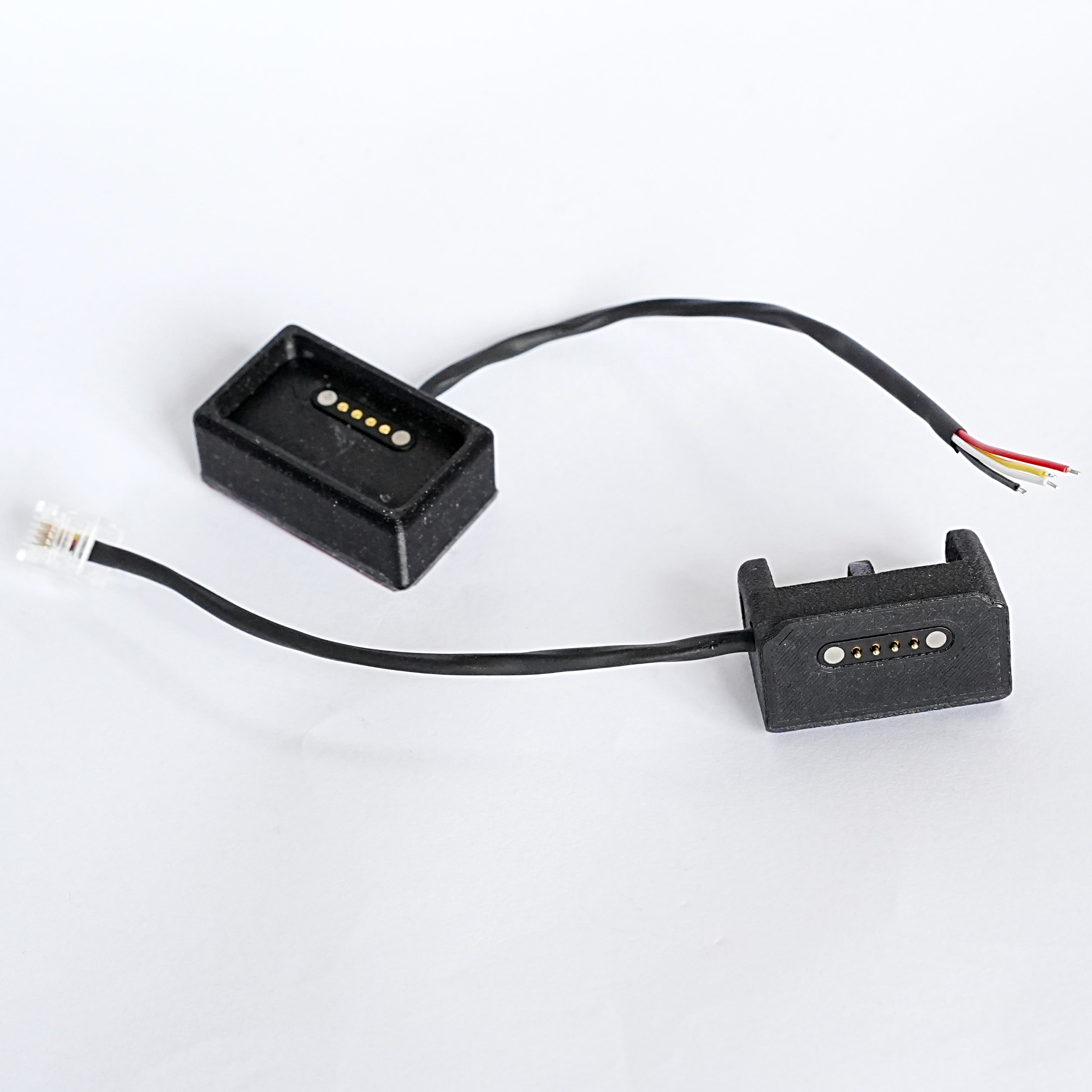

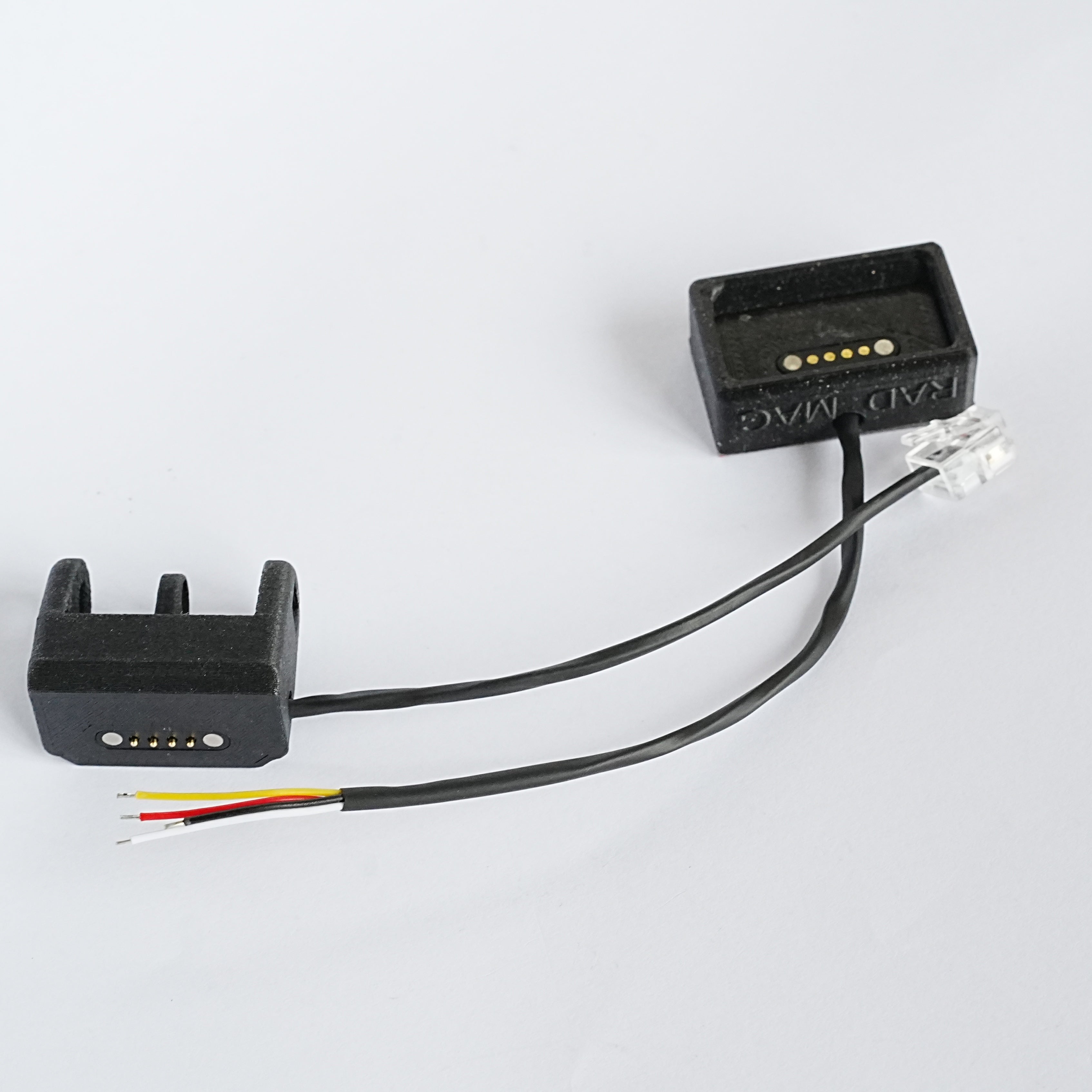

4-Pin Variant Wires: Includes 4 short leads (10cm+ each) for wiring/soldering to your remote mute switch.

Isopropyl alcohol prep wipe - to clean the windscreen for the strongest possible bond.

A 12V power source (hardwire installation recommended).

Note: You will need to transfer over your square neck screw, thumb screw and pivoting mount.

These can be purchased here.

Important: 2-Pin and 4-Pin systems are not cross-compatible. Your detector, mount, and power cable must all use the same pin configuration.

2-Pin (Power Only): Your detector functions as it does today. All functions on the detector work. No remote mute switch.
4-Pin (Power + Mute/Alert/Data): Allows you to use a remote mute hardwire kit.

Unsure which one you need? Message us before ordering and we’ll help you confirm!

This guide is only required if you are installing our 4-pin mount to connect with your existing Uniden SmartCord Hardwire Kit.

Not using a SmartCord? Save time and select our standard 2-pin option instead.

Pin	Function	Mount	Uniden Cable
P2	Mute input	Yellow	Green
P3	+12V power	Red	Red
P4	Ground	Black	Black
P5	Alert LED output	White	White

P3=Red=+12V and P4=Black=GND never change between brands.

4 Pin Wiring Guide (Mute button)
Detector Mount
Powered Mount

30-Day Money-Back Guarantee

Mount it. Drive it. If it’s not right, send it back for a full refund.

Full policy ›

Install Steps

Step 01

Clean & Apply

Wipe with isopropyl alcohol, then firmly press the receiver onto the windshield.

Step 02

Connect Power

Wire in the ground loop and connect to a switched 12V source.

Step 03

Drive

Snap your detector arm in and hit the road — you're protected.

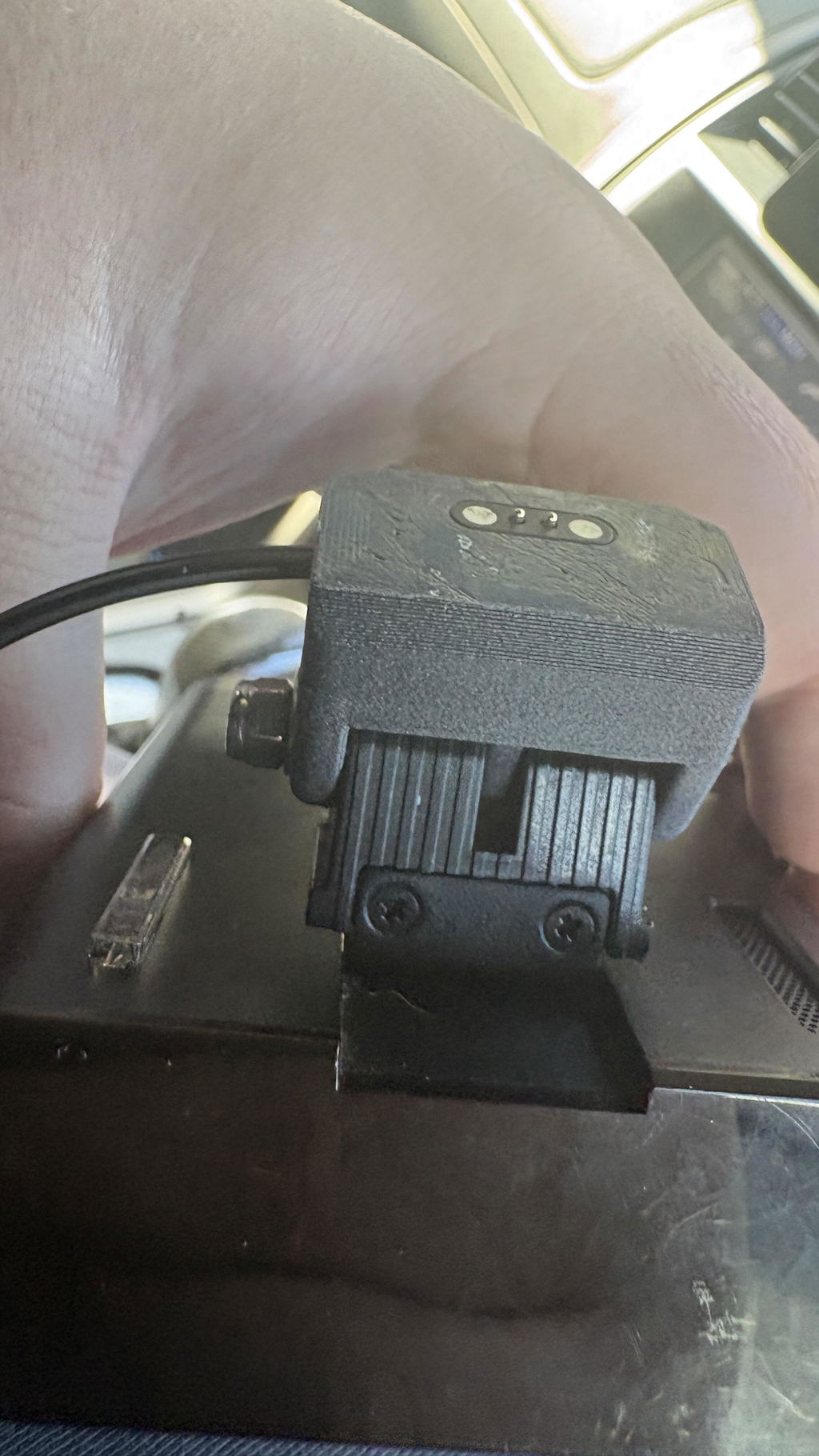

Detector mount

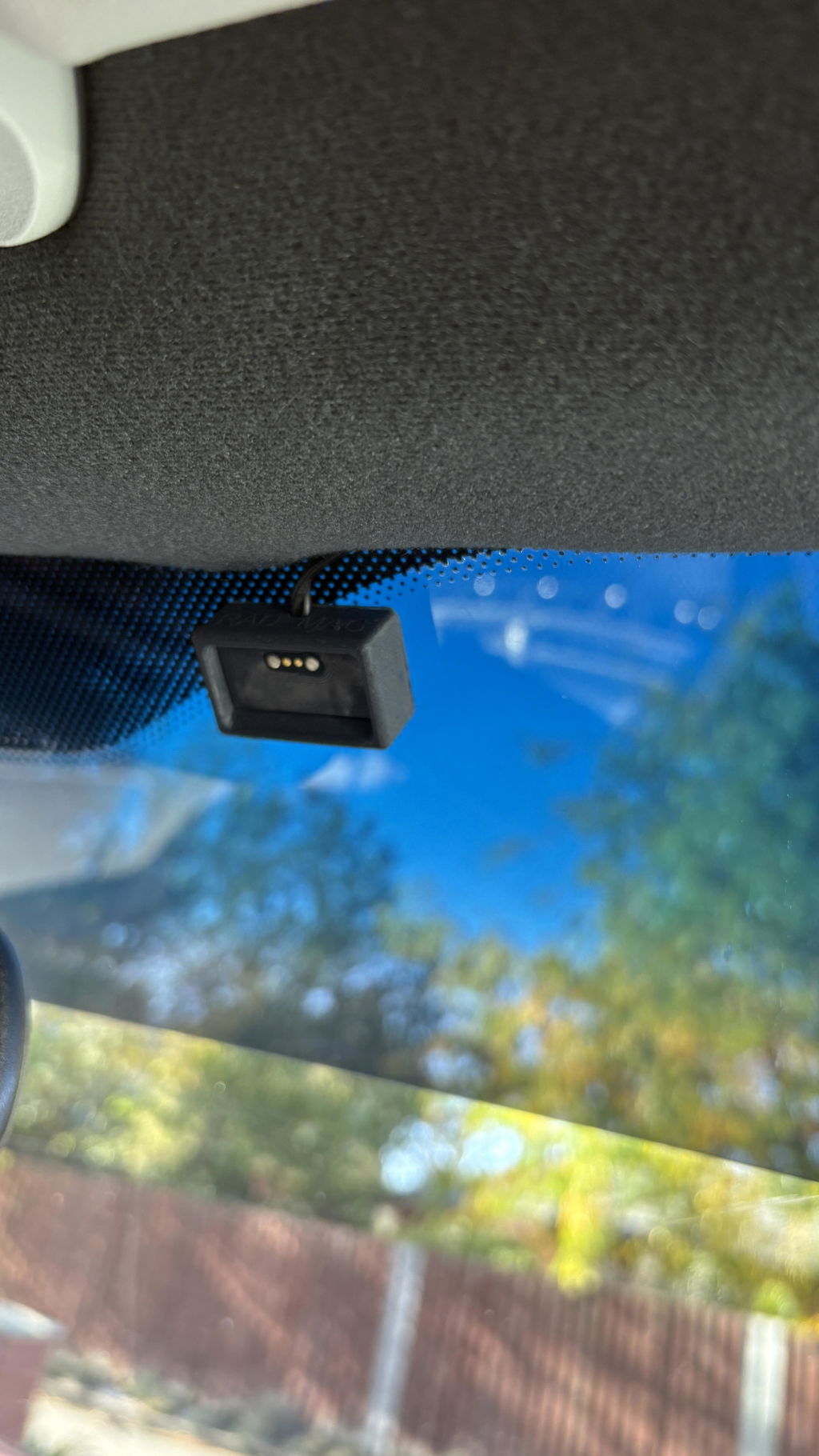

Powered receiver unit

Wiring guide — remote mute

Know your mount - 2-Pin vs 4-Pin

2-Pin

Power only - your detector runs and functions as normal. Best for simple hardwire installs.

4-Pin

Power + data - required for the Escort Smart Cord, Uniden Remote Mute Kit or Valentine One ESP accessories.

2-Pin and 4-Pin are not interchangeable — forcing a mismatched connection can damage your detector.

Full 2-Pin vs 4-Pin guide

Frequently asked questions

Are 2-Pin and 4-Pin mounts interchangeable?

No. They are completely non-interchangeable. They use different physical connectors and internal layouts. Mixing components or forcing a mismatched connection can permanently damage your radar detector.

Does my detector still fully function on 2-Pin?

Yes. All on-device features (Mute, Mark, top buttons, display, and audio alerts) work perfectly normal on both versions. "No alert out" simply means the 2-Pin mount cannot send signals to external, separate dash accessories (like a remote mute button or motorcycle helmet link).

Which one do I need?

Mount Type	Best Used For	Confirmed Models
2-Pin (Power Only)	Simple, clean hardwiring (e.g., mirror taps or basic fuse box power) where you just want the detector to power on and function as usual.	Standard power-only setups.
4-Pin (Power + Data)	Required if you are using the manufacturer's factory "smart" hardwire kit with a remote mute button.	Uniden R4 / R7 / R8 / R8NZ, Escort EZ Mag, V1 Gen 2.

⚠️ Bottom Line: If you want to use a Escort Smart Cord, Uniden Remote Mute Kit or Valentine One ESP Devices and are comfortable with soldering wires get the 4-pin. Otherwise, the standard 2-pin is fine for most users, If still unsure, message us before buying. 😊

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.

The process is super simple and is virtually the same for both Escort and Uniden Detectors.

Click Here for a video tutorial: Video Tutorial

All you need to do is connect the 12V Power source and the negative loop terminal.

Here is a guide to follow.

Our products are manufactured both locally from 3D Printed parts and imported electronics. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.

Note: 3D Parts can have slight imperfections. However, they are functionally tested and are tested to work as intended.

Shipping is calculated based on your location and the items in your order. You will always know the shipping price before you purchase.

5 stars: 13 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Complete game changer for my radar so easy to install so easy to use hide all the messy wires looked at absolutely perfect. Definitely recommend recommending to quite a few of my friends.

Hi Patrick, we're thrilled to hear the RAD MAG Mount has made such a positive difference for your radar setup! Thanks for recommending us and sharing your experience. We appreciate your support!

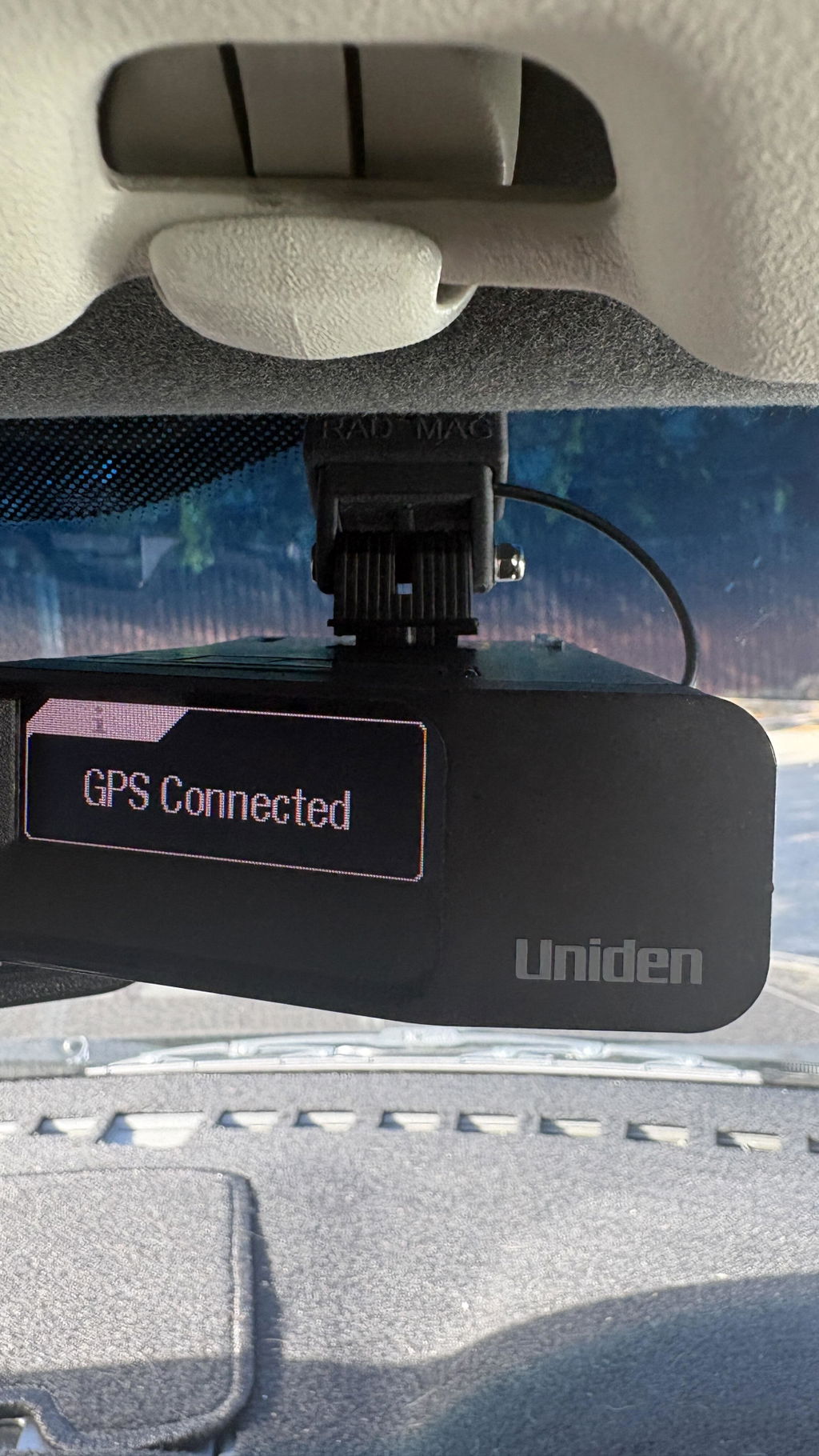

The perfect radar detector mount for my Tesla Model Y.

I initially ordered the mount with the mirror tap, only to find there was not enough power behind the mirror on the 2026 Tesla Model Y Juniper. I sent an email to support on a Saturday afternoon and was surprised to get a response in minutes. After a chat, I decided to order the quick-connect power lead as I needed to get power from elsewhere on the car.

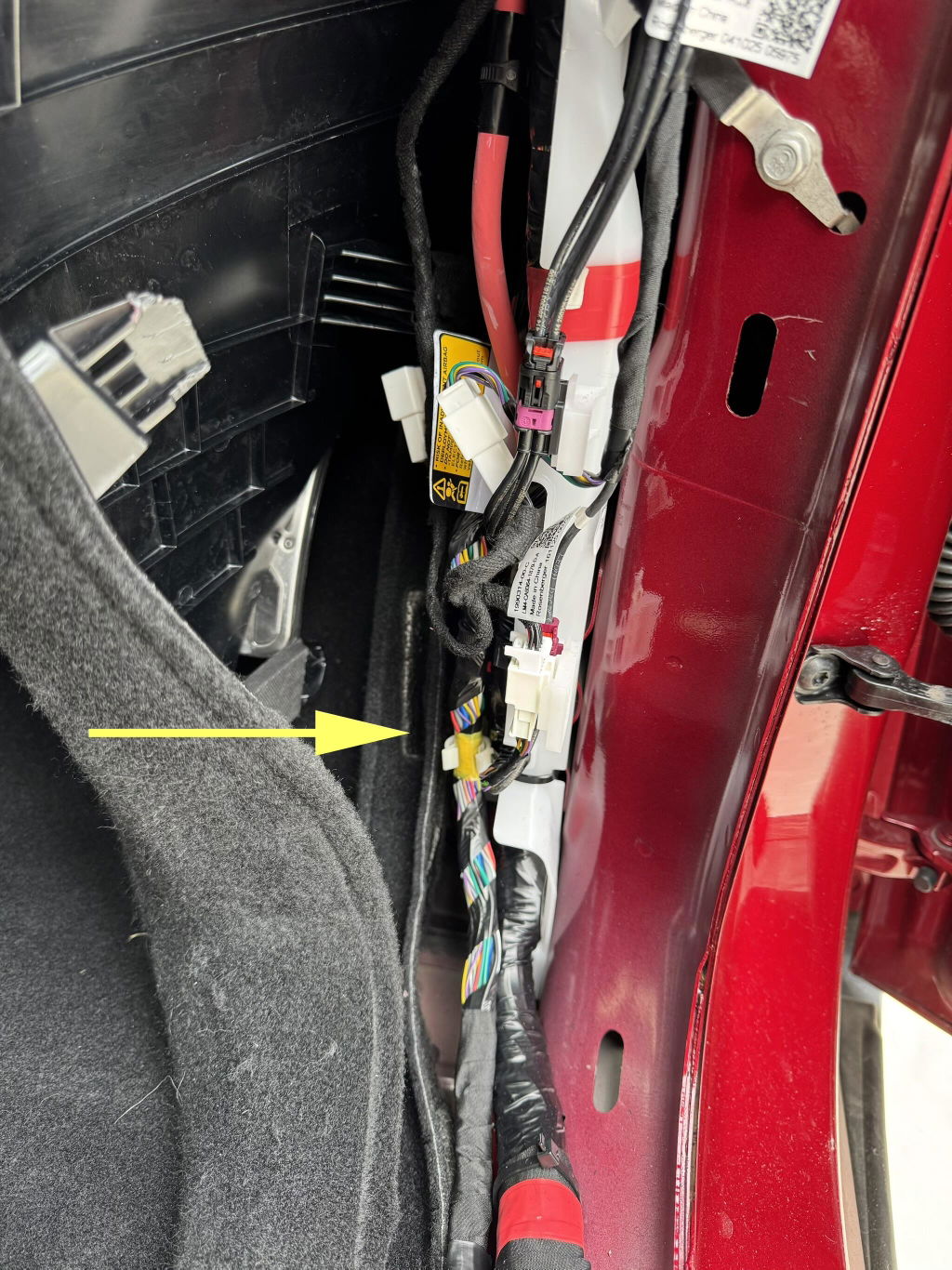

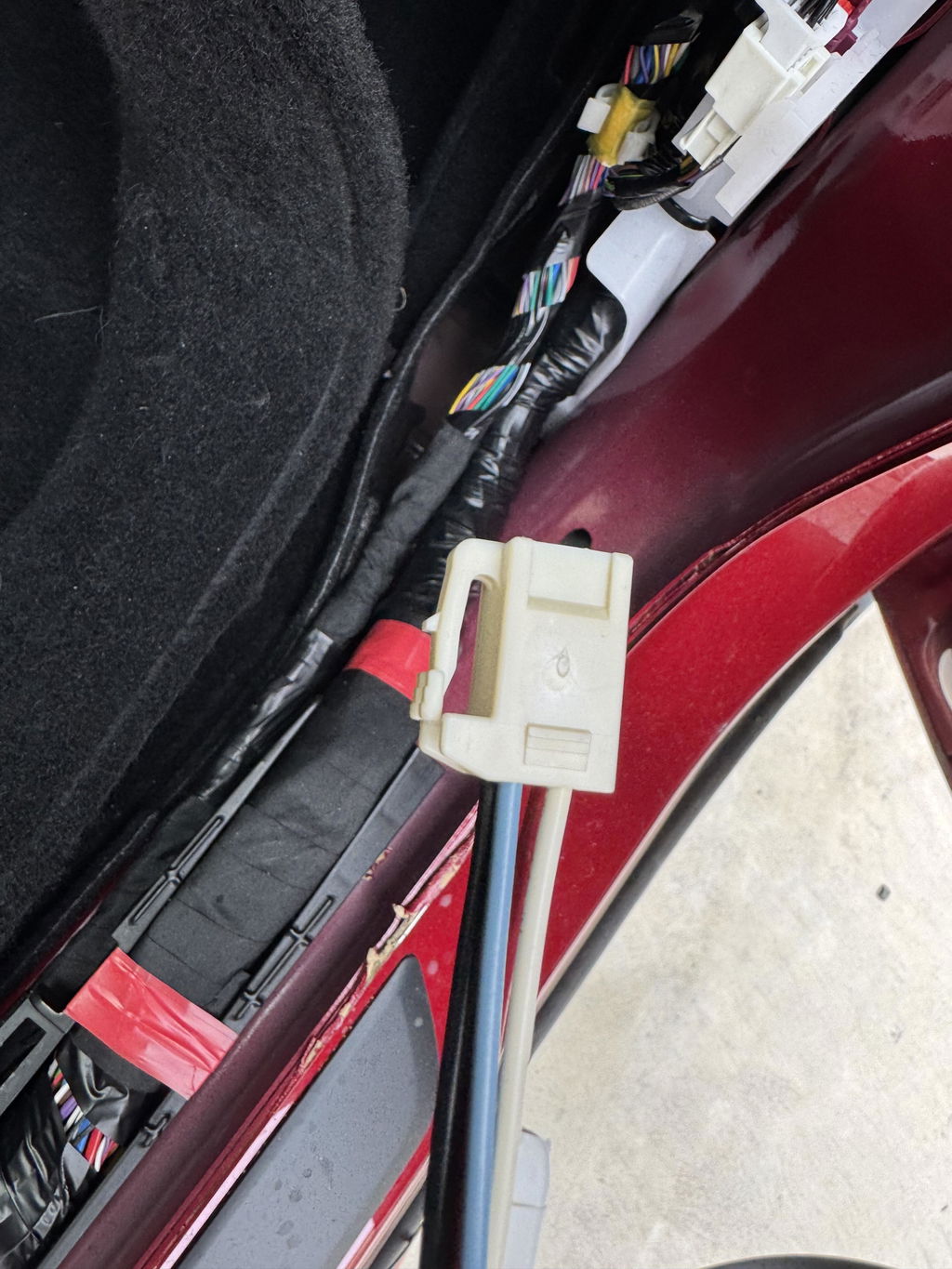

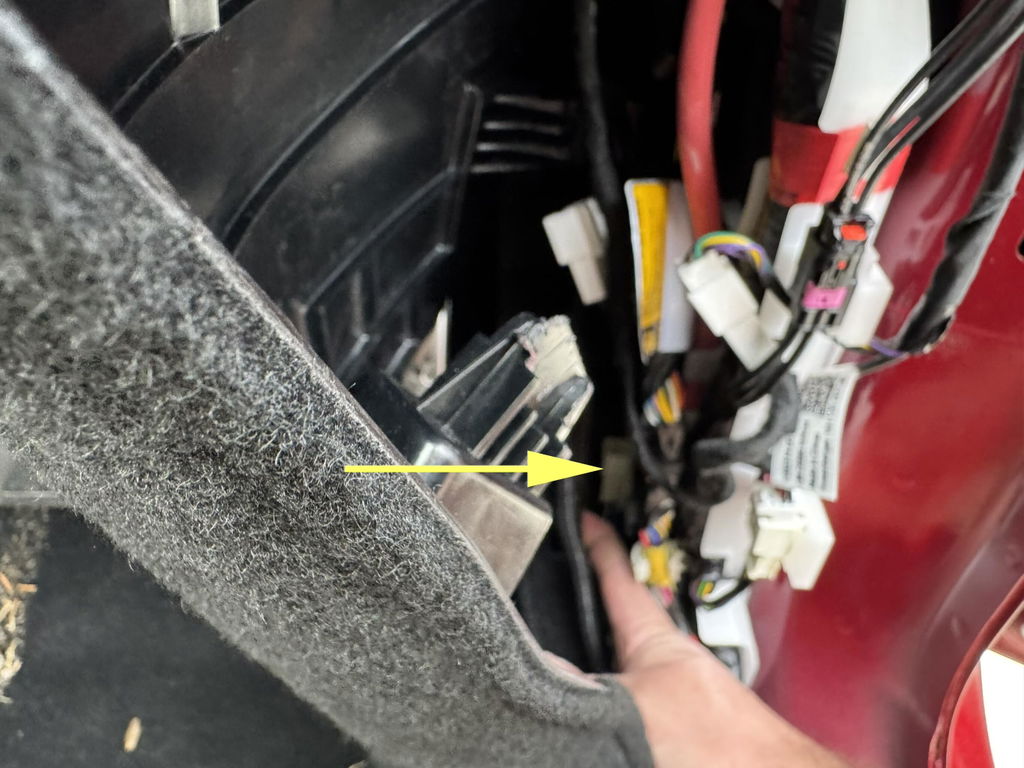

I also ordered the Trailer Brake Harness from Tesla (Part Number: 1072586-00-A | Description: ASY, HARN, TRAILER BRAKE ECU ADAPTER) so I did not need to cut any wires, etc., and this was the cleanest way to get power from the car. A word of warning though, this harness connection is on the driver’s side whether the car is LHD or RHD. Do not do what I did and disassemble the trim on the left side to find the connection wasn’t there! Thankfully, the driver’s side is much easier to take apart and put back together. I have included a picture with the harness socket location.
